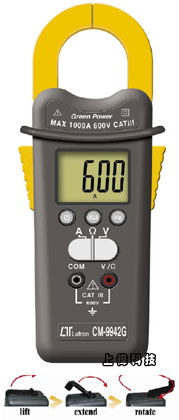

CM-9942G 綠能智慧型交流鉤錶
簡介
-
可由手搖發電機提供電源，亦可使用電池
-
手搖發電機10秒以上，可提供短暫待測電量
-
交流電流：0.1A ~ 1000.0A ±2%
-
交直流電壓：0.001V ~ 600.0V ±1%
-
電阻：0 ~ 6MΩ ±1%
-
電容：0.001nF ~ 60uF ±3%
-
頻率：40Hz ~ 1KHz ±3%
-
鉤部口徑 45mm
-
Size：228 X 85.7 X 45.6mm
FEATURES
Green power, battery is no need, power supply from the handy generator, operate the generator 10 to 20 seconds will offer 10 minutes energy typically.
Hybrid power, meter's power also can supply by the battery,
Meet CAT III-600 V.
6000 counts A/D, high resolution.
ACV, ACA, DCV, ohms, continuity, Hz, Capacitance, Diode, Data hold.
Smart function, Auto range.
Smart operation, Build in 4 intelligent function : " A ", " Ω ", " V ".
" A " function can measure ACA with auto range.
" V " function can select ACV, DCV automatically with auto range.
" Ω " function can select the Resistance , Diode, Continuity beeper, Capacitance automatically with auto range.
Data hold function for ACA measurement.
Auto shut off is available to save battery life.
10 M ohm impedance for voltage circuit.
Built-in overload protection for most ranges.
LSI circuit provides high reliability and durability.
Patent.
Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
Full line optional adapters : Clamp adapter, Tachometer adapter, Pressure adapter, Humidity Adapter, Sound level adapter, Anemometer adapter, Light adapter, EMF adapter.
一般規格
綠色電源及融合式電源 (Green power and Hybrid power)
- * Green power, battery is no need, power supply from the handy generator, operate 10 to 20 seconds the generator will offer 10 minutes energy typically.
- * Hybrid power, meter also can supply by the battery power.
顯示 (Display)
- 40 mm x 30.3 mm large LCD display.
測量 (Measurement)
- ACV, ACA, DCV, DCA, ohms, continuity beeper, Hz, Capacitance, Diode, Data hold.
A/D 計數 (A/D counts no.)
- 6000 counts.
範圍選擇 (Range selection)
- Smart function, auto range.
時髦功能 (Smart function)
- " A " function can measure ACA with auto range.
- " V " function can select ACV, DCV automatically with auto range.
- " Ω " function can select the Resistance, Diode, Continuity beeper, Capacitance automatically with auto range.
讀值鎖定 (Data hold)
- To freeze the display reading on the LCD display. * Available for ACA measurement only.
電源開關管理 (Power On/Off management)
- Manual power off.
- Auto power off : If meter is not operated within 3 minutes will auto power switch off.
極性 (Polarity)
- Automatic Switching, '-' indicates negative polarity.
鉤部口徑 (Max. Jaw Open Size)
- 45 mm ( 1.77 inch ) Dia.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
取樣時間 (Sampling Time)
- Approx. 0.5 to 1 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- Green power : Power from the handy generator, battery is no need.
- Battery power : DC3V battery ( CR-2032 ) x 2 PCs.
電源消耗 (Power Consumption)
- DC 3.9 mA.
體積 (Dimensions)
- 228 x 85.7 x 45.6 mm ( 9.0 x 3.4 x 1.8 inch )
重量 (Weight)
- 310 g/0.68 LB.
附件 (Accessories Included)
- Red and Black Test Leads( CAT III 1KV Test Leads )........ 1 Set
- Instruction Manual ................. 1 PC.
選購附件
- carrying case......................CA-05A
- Full line adapters : ACA/DCA current adapter, Tachometer adapter, Humidity adapter, Pressure adapter, Light adapter, EMF adapter, Sound level adapter, High voltage probe.
電器規格 (23±5 ℃)
交/直流電壓 (AC/DC Voltage) * auto range
- Range : 6 V /60 V/600 V
- Resolution : 0.001 V /0.01 V/0.1 V
- Accuracy : DCV : ± ( 1 % + 2d ) ; ACV : ± ( 1.2 % + 5d )
- Input Impedance : 10 M ohm.
- Over Load Protection: AC/DC 600 V.
- Remark : * The input impedance is 10 Mega ohm.
- * ACV specification be tested on sine wave 50/60 Hz.
- * For smart function ,the ACV start measurement voltage is larger than 400 mV ± 100 mV.
交流電流 (AC Current) * auto range
- Range : 600 A/1000 A
- Resolution : 0.1 A/1 A
- Accuracy : 600 A range : ± ( 1.5% + 2d )
- 1000 A range : ± ( 2% + 8d )
- Over Load Protection : AC 1000A.
- Remark : * ACA specification be tested on sine wave 50/60 Hz.
- * Measurement range : 0.10 A to 1000 A
歐姆 (OHMS)
- Range : 600/6 K/60 K/600 K/6 M ohm
- Resolution : 0.1/1/10/100/1 K ohm
- Accuracy : : ± ( 1% + 3d )
- Over Load Protection : ± 500 DCV, 350 ACV.
電容 (CAPAITANCE)
- Range : 6 nF/60 nF/600 nF/6 uF/60 uF
- Resolution : 0.001 nF/0.01 nF/0.1 nF/0.001 uF/0.01 uF
- Accuracy : ± ( 3% + 5d )
- Remark : Discharge capacitor before testing.
頻率 (Frequency)
- Range : 40 Hz to 1 KHz.
- Resolution : 1 Hz.
- Accuracy : ± ( 0.3% + 2d )
- Input impedance : 10 M ohm.
- Over load protection : AC/DC 600 V.
二極體 (Diode)
- Short/non conductance, good/defect test.
導通測試 (Continuity)
- If measuring resistance is less than 10 ohm, the beeper will sound .
|
