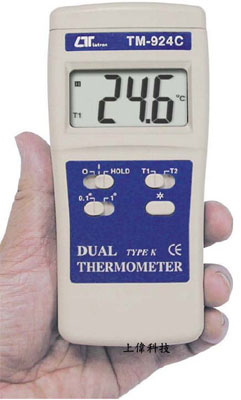

TM-924C 雙組溫度計
特 色
-
測量範圍 : -50~1230°C
-
精確度 : ±0.75%
-
T1 / T2雙組輸入選擇 (Type K)
-
解析度 : 0.1°C 或1 °C 選擇
-
讀值鎖定及背光顯示功能
-
Size：152 X 69 X 37mm
-
DC ADAPTER
FEATURES
► Dual channel input.
► 0.1° , 1° selection.
► Large LCD display allows clear read-out even at high ambient light environment.
► LCD display with back light structure.
► Heavy duty & compact housing case.
► Data hold.
► Operates from 006P DC 9V battery.
► Power supply accept the DC 9V adapter input.
► Low power consumption.
► Meet any standard type K(NiCr-NiAl) probe.
► Fitted with standard type K input measuring socket.
► Build in precision cold junction compensation circuit.
► Thermocouple sensor for Temp. measurement, fast response time.
► Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
► Full line, wide range optional thermocouple probe.
一般規格
顯示 (Display)
- LCD size : 49 mm x 25.5 mm,
- Digit size : 21.7 mm x 8.8 mm.
感應器型式 (Sensor Type)
- Thermocouple K ( NiCr-NiAl ), optional.
測量頻數 (Measurement channels)
- Two channel temp. input (T1, T2).
範圍 (Range)
- - 50 ℃ to 1300 ℃.
解析度 ' 範圍 ' 精確度 ( 23 ± 5 ℃)
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-50 to 199.9 ℃ |
± ( 0.5% +1 ℃ ) |
| 1 ℃ |
-50 to 0 ℃ |
± ( 1% +1 ℃) |
| 1 to 900 ℃ |
± ( 0.5% +1 ℃ ) |
| 901 to 1300 ℃ |
± ( 1% +1 ℃) |
極性 (Polarity)
- Automatic switching, '-' indicates negative polarity.
輸入阻抗 (Input Impedance)
- 10 Mega ohm.
過載輸入指示 (Over input Indication)
- Display shows " 1 ".
電路 (Circuit)
- Build linearity compensation circuit for full range, high precision.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
電源供應 (Power Supply)
- 006P DC 9V battery. or DC 9V adapter ( optional ) input.
電源損耗 (Power consumption)
- Approx. DC 3.0 mA.
重量 (Weight)
- 177 g/0.39 LB.
體積 (Dimension)
- 152 x 69 x 36.3 mm ( 6.0 x 2.7 x 1.4 inch).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional accessories)
- * Type K temperature probe, TP-01, TP-02A, TP-03, TP-04
* Soft carrying case, CA-52A
* AC to DC 9V power adapter.
|
