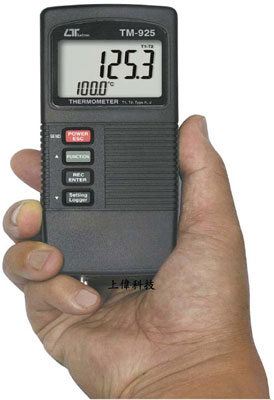

TM-925 雙組溫度計
特色
-
測量範圍 : Type K : -50.0 ~ 1300.0°C , Type J : -50.0 ~ 1100.0°C
-
-
精確度 : ±0.4%
-
攝氏(°C) / 華氏(°F)單位選擇
-
可記錄1600筆資料
-
讀值鎖定及記錄測量中之最大/最小值
-
RS-232 / USB 連接介面 (軟體選購)
-
Size：152 X 69 X 37mm
FEATURES
Two channels thermometer, T1, T2, T1-T2, T1 only.
Both type K/J temp. measurement, wide range.
℃/℉, 0.1 degree.
Microcomputer circuit provides intelligent function and high accuracy.
LCD with two display, easy readout.
Manual and auto data logger, with flexible sampling time selection, can save max. 1,600 reading data.
Records Maximum and Minimum readings with recall.
Data hold function for freezing the desired value.
It can default to accept type K or type J Temp. probe.
It can default auto power off or manual power off.
It can default the measuring unit to ℃ or ℉.
Build in the input socket for DC 9V power adapter.
RS232 PC serial interface.
Few panel buttons, easy operation.
Built-in low battery indicator.
Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 44 mm x 29 mm dual function LCD display.
顯示單位 (Display Unit)
- ℃, ℉.
解析度 (Resolution)
- 0.1 ℃, 0.1 ℉.
測量頻數 (Channels)
- T1, T2, T1-T2, T1 only.
感應器型式 (Sensor Type)
- Type K or Type J.
取樣時間及資料集錄器 (Sampling Time of Data Logger)
- Manual : Push the data logger button once will save data one time. * Set the sampling to 0 second.
- 1, 2, 5, 10, 30, 60, 600, 1800, 3600 seconds.
資料集錄器記錄數 (Data Logger number)
- Max. 1,600-point Data logger
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the cold junction both type K/J thermometer
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- Available for advanced calibration procedure.
感測器輸入接頭 (Probe Input Socket)
- Standard 2 pin thermocouple socket.
過載指示 (Over Indication)
- Show "- - - -".
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. (Heavy Duty Type)
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Approx. DC 5.5 mA.
重量 (Weight)
- 196 g/0.43 LB.
體積 (Dimension)
- 135x60x33 mm, ( 5.3x2.4x1.3 inch ).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * AC to DC 9V adapter.
- * RS232 cable, UPCB-01
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
- * Data Logger software, SW-DL2005.
- * Carrying case, CA-52A.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| Type J |
0.1 ℃ |
-50.0 to 1100.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
* Accuracy value is specified for the meter only.
* Type K probe TP-01 TP-02A, TP-03. TP-04 is the optional type K Temp. probe.
|
