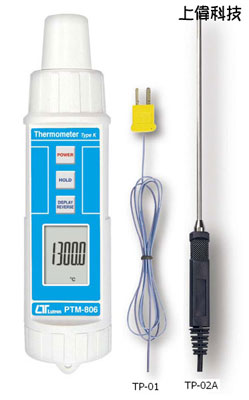

PTM-806 溫度計
特色
-
測量範圍 : -50.0 ~ 1300.0°C
-
-
讀值鎖定功能
-
顯示器正 / 倒轉顯示選擇功能
-
具有自動溫度補償功能
-
Size：210 X 80 X 50mm
FEATURES
Both type K temp. measurement, wide range.
℃/℉, 0.1 degree.
Meter can default the measuring unit to ℃ or ℉.
Standard type K input socket, can cooperate the full line optional type K temp. probe.
Two type display, normal or reverse, easy for operation.
Data hold to freeze the display value.
Bright LCD display.
Microprocessor circuit ensures high accuracy and provides special functions and features.
Auto power off saves battery life.
Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries.
Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing.
一般規格
顯示 (Display)
- LCD size : 28 mm x 19 mm.
溫度單位 (Temp. unit)
- ℃ or ℉ with default.
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
熱電偶型式 (Thermocouple Type)
- Type K.
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the cold junction
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
感測器輸入接頭 (Probe Input Socket)
- Standard 2 pin thermocouple socket.
資料鎖定 (Data Hold)
- Freeze the display reading.
過載指示 (Over Indication)
- Show "- - - -".
取樣時間 (Sampling Time)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4/AAA ) x 4 PCs,
電源電流 (PowerCurrent)
- Approx. DC 6.5 mA.
重量 (Weight)
- 156 g/ 0.34 LB.
體積 (Dimension)
- 175 x 40 x 40 mm (6.9" x 1.6" x 1.6")
附件 (Standard Accessory)
- Instruction manual........................1 PC
- Type K thermocouple probe, TP-01.........1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Soft carrying case with sash ( 210 x 80 x 50 mm ), Model : CA-52A
- * Type K thermocouple probe, TP-02A. TP-03, TP-04
TP-01 K型熱電偶感測棒 (TYPE K THERMOCOUPLE PROBE, TP-01)
- * TP-01 Temp. probe is standard accessory.
- * Max. short-tern operating Temperature: 300 ℃ (572 ℉).
- * It is an ultra fast response naked-bead thermocouple suitable for many general purpose application.
儀器電氣規格 ELECTRICAL SPECIFICATIONS FOR THE METER (23±5 ℃)
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
- * Accuracy Is specified for the meter only.
- * Type K probe TP-01 is the standard accessory.
- * Type K probe TP-02A, TP-03. TP-04 are the optional accessories.
選購K型熱電偶感測棒 (OPTIONAL TYPE K TEMPERATURE PROBE)
Thermocouple Probe, TP-02A
* Measure Range : -50 ℃ to 900 ℃ ( -50 ℉ to 1650 ℉ ).
* Dimension : 10 cm tube, 3.2 mm Dia. Penetration & Immersion applications.
Thermocouple Probe, TP-03
* Measure Range : -50 ℃ to 1200 ℃ ( -50 ℉ to 2200 ℉ ).
* Dimension : 10 cm tube, 8 mm Dia.
* Applications : High temperature, Penetration & Immersion
Surface Probe, TP-04
* -50 ℃ to 400 ℃ ( -50 ℉ to 752 ℉ ).
* TP-04 Dimension : Temp. sensing head-15 mm Dia. Probe length-120 mm.
* Applications : Precision surface temp. measurement usage.
|
