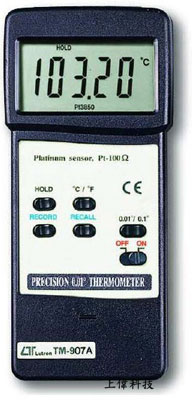

TM-907A 精密型溫度計

特色

• 測量範圍 :  -199.99 ~ 800°C

                               -199.99 ~ 1472°F

• 精確度 :  ±0.1%

• 解析度選擇 : 0.01 或 0.1

• 可記錄最大值'最小值及讀值鎖定

• 只能搭配TP-100型感溫棒使用(選購品)

• RS-232 / USB 連接介面(軟體選購)

• Size：180 X 72 X 32mm

FEATURES

► Professional thermometer with high accuracy & 0.01 resolution.

► PT 100 probe input cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.

► Cooperate with 4 wires Pt-100 ohm probe, high precision.

► Wide range display from -199.99 to 850 ℃.

► Build in ℃ & ℉ select button on the front panel.

► Build in 0.01& 0.1select switch on the front panel.

► RS 232 computer serial interface.

► Super large LCD with unit display, easy readout.

► Data hold function to store the desired value.

► Memory function to record the maximum & minimum reading with recall.

► Built-in low battery indicator.

► Optional carrying cases are available.

一般規格

顯示 (Display)

62 mm x 34 mm supper large LCD display, 13 mm ( 0.5" ) digit size.

感測棒型態 (Probe type)

Platinum PT 100 ohm ( 0.00385 alpha coefficient, meet DIN IEC 751 )

功能 (Functions)

℃, ℉, 0.010.1 Data hold.

解析度 (Resolution)

0.01℃/0.1℃, 0.02℉/0.1℉.

電路 (Circuit)

Use the software to make linearity correction instead the traditional hardware circuit.

感測棒輸入接頭 (Probe input socket)

DIN 4 pin socket.

取樣時間 (Sampling Time)

Approx. 0.4 second.

鎖定功能 (Hold Function)

To freeze the display reading value.

記憶回叫 (Memory Recall)

Memorize the Maximum, Minimum reading with recall.

過載指示 (Over Indication)

Show " - - - - ".

資料輸出 (Data Output)

RS232 PC serial interface.

電源供應 (Power Supply)

Heavy duty or Akaline type, DC 9V battery, 006P, MN1604 (PP3) or equivalent.

電源損耗 (Power Consumption)

Approx. DC 15 mA.

操作溫度 (Operating Temp. )

0 to 50 ℃ (32 to 122 ℉). * Meter only.

操作溼度 (Operating Humidity)

Less than 80% RH. * Meter only.

重量 (Weight)

285 g/0.62 LB.

體積 (Dimension)

180x72x32 mm( 7.1x2.8x1.3 inch ).

附件 (Standard Accessory)

Operational manual..... 1 PC.

選購附件 (Optional & accessories Temp. Probe)

Carrying case

Pt-100 ohm Temp. probe, TP-100

RS232 cable, UPCB-01

USB cable, USB-01

Application software

Data acquisition software. SW-U801-WIN

儀器電氣規格 ELECTRICAL SPECIFICATIONS FOR THE METER (23±5 ℃)

Remark

* The accuracy is specified for the meter only

選購溫度感測棒及其他附件 (OPTIONAL TEMPERATURE PROBE & OTHER ACCESSORIES)

Carrying Case

Model : CA-03, Vinyl soft carrying case, size : 190 x 90 x 55 mm.

Model : CA-05A, Soft carrying case with sash, 260 x 110 x 55 mm.

Model : CA-06, Hard carrying case, 280 x 195 x 65 mm.

PT-100感測棒 (Pt-100 ohm Probe Model : TP-100)

* -50 ℃ to 400 ℃ (-58 ℉ to 752 ℉), DIN plug, 4 pins/4 wires, Class A, Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751. Accuracy : (0.15 + (0.002 x T)) C. T : measuring temperature.

* Dimension Sensing head - 152 mm tube, Probe length - 245 mm.

* Cable length : 100 cm.

RS-232 電纜 (RS232 cable)

RS232 cable for connecting between the meter & the computer ( COM port ) Model : UPCB-01

USB 電纜 (USB cable)

USB cable for connecting between the meter & the computer ( USB port ) Model : USB-01

軟體 (Software)

Model : SW-U801-WIN, Windows version.
* Software apply as the performance of data logging system & data recorder
