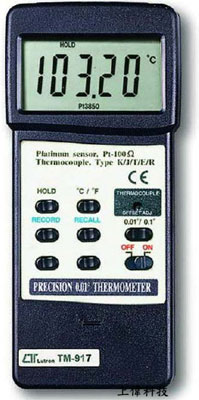

TM-917 多功能精密溫度計
特色
測量範圍 :
TP-100 : -199.99 ~ 800.0°C
TYPE K : -100.00 ~ 1370.0°C
TYPE J : -90.00 ~ 900.0°C
TYPE T : -100.00 ~ 400.0°C
TYPE E : -80.00 ~ 779.9°C
TYPE R : 0.0 ~ 1770°C
可記錄最大值'最小值及讀值鎖定
精確度 : ±0.1%比較值功能(相對值)
RS-232 / USB 連接介面(軟體選購)
攝氏(°C) / 華氏(°F)單位選擇
Size：180 X 72 X 32mm
FEATURES
► Professional thermometer with high accuracy & 0.01 resolution.
► Accept multi type temp. probe input : platinum PT 100 ohm, thermocouple type K/J/T/E/R.
► With 0.01 high resolution both for Platinum & Thermocouple probe input.
► PT 100 probe input cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
► Cooperate with 4 wires Pt-100 ohm probe, high precision.
► Wide range display from -100 to 1370 ℃ ( type k ).
► Build in ℃ & ℉ select button on the front panel.
► Build in 0.01& 0.1select switch on the front panel.
► Super large LCD with unit display, easy readout.
► Data hold function for stored the desired value on display.
► Sensor select button on the front panel, easy to change different type probe.
► Memory function to record the maximum & minimum reading with recall.
► Build the REL. button, useful for relative measurement.
► Built-in low battery indicator.
► Optional heavy duty & compact housing case, designed for easy carry out.
一般規格
顯示 (Display)
- 62 mm x 34 mm supper large LCD display, 13 mm ( 0.5" ) digit size.
感測棒型態 (Probe type)
- 5 types :
- 1. Platinum PT 100 ohm ( 0.00385 alpha coefficient, meet DIN IEC 751 )
- 2. Thermocouple type K.
- 3. Thermocouple type J.
- 4. Thermocouple type T.
- 5. Thermocouple type E
- 6. Thermocouple type R.
功能 (Functions)
- ℃, ℉, 0.010.1 Data hold.relative measurement.
解析度 (Resolution)
- 0.01℃/0.1℃, 0.02℉/0.1℉.
電路 (Circuit)
- Use the software to make linearity correction instead the traditional hardware circuit.
感測棒輸入接頭 (Probe input socket)
- Pt 100 ohm probe : DIN 4 pin socket.
- Thermocouple couple probe : Standard 2 pin type K socket.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
鎖定功能 (Hold Function)
- To freeze the display reading value.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
過載指示 (Over Indication)
- Show " - - - - ".
資料輸出 (Data Output)
- RS232 PC serial interface.
電源供應 (Power Supply)
- Heavy duty or Akaline type, DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 15 mA.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉). * Meter only.
操作溼度 (Operating Humidity)
- Less than 80% RH. * Meter only.
重量 (Weight)
- 285 g/0.62 LB.
體積 (Dimension)
- 180x72x32 mm( 7.1x2.8x1.3 inch ).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- Carrying case
- Pt-100 ohm Temp. probe, TP-100
- Type K Thermocouple probe.
測量解析度/範圍 (MEASURING RESOLUTION / Range)
| Type |
Resolution |
Range |
| Platinum PT 100 ohm |
0.01 ℃ |
-199.99 to 199.99 ℃ |
| 0.1 ℃ |
200.0 to 850.0 ℃ |
| 0.02 ℉ |
-199.99 to 392.00 ℉ |
| 0.2 ℉ |
392.0 to 1562.0 ℉ |
| Thermocouple type K |
0.01 ℃ |
-100.00 to 100.00 ℃ |
| 0.1 ℃ |
100.0 to 1370.0 ℃ |
| 0.02 ℉ |
-148.00 to 212.00 ℉ |
| 0.2 ℉ |
212.0 to 2498.0 ℉ |
| Thermocouple type J |
0.01 ℃ |
-90.00 to 100.00 ℃ |
| 0.1 ℃ |
100.0 to 900.0 ℃ |
| 0.02 ℉ |
-130.00 to 212.00 ℉ |
| 0.2 ℉ |
212.0 to 1652.0 ℉ |
| Thermocouple type T |
0.01 ℃ |
-100.00 to 100.00 ℃ |
| 0.1 ℃ |
100.0 to 400.0 ℃ |
| 0.02 ℉ |
-148.00 to 212.00 ℉ |
| 0.2 ℉ |
212.0 to 752.0 ℉ |
| Thermocouple type E |
0.01 ℃ |
-80.00 to 90.00 ℃ |
| 0.1 ℃ |
90.0 to 779.9 ℃ |
| 0.02 ℉ |
-112.00 to 194.00 ℉ |
| 0.2 ℉ |
194.0 to 1435.8 ℉ |
| Thermocouple type R |
0.1 ℃ |
0 to 600.0 ℃ |
| 1 ℃ |
600 to 1770 ℃ |
| 0.2 ℉ |
32.0 to 112.0 ℉ |
| 1 ℉ |
112 to 3218 ℉ |
選購溫度感測棒及其他附件 (OPTIONAL TEMPERATURE PROBE & OTHER ACCESSORIES)
Carrying Case
- Model : CA-03, Vinyl soft carrying case, size : 190 x 90 x 55 mm.
- Model : CA-06, Hard carrying case, 280 x 195 x 65 mm.
PT-100感測棒 (Pt-100 ohm Probe Model : TP-100)
- * -50 ℃ to 400 ℃ (-58 ℉ to 752 ℉), DIN plug, 4 pins/4 wires, Class A, Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751. Accuracy : (0.15 + (0.002 x T)) C. T : measuring temperature.
- * Dimension Sensing head - 152 mm tube, Probe length - 245 mm.
- * Cable length : 100 cm.
TP-01 K型熱電偶感測棒 Thermocouple Probe (Type K) TP-01
- * Measure Rage: -40 ℃ to 250 ℃, -40 ℉ to 482 ℉.
- * Ultra fast response naked-bead thermocouple, general purpose application
TP-02A K型熱電偶感測棒 Thermocouple Probe (Type K) TP-02A
- * Measure Range: -50 ℃ to 900 ℃, -50 ℉ to 1650 ℉
- * Dimension: 10 cm tube, 3.2 mm Dia.
TP-03 K型熱電偶感測棒 Thermocouple Probe (Type K) TP-03
- * Measure Range: -50 ℃ to 1200 ℃, -50 ℉ to 2200 ℉.
- * Dimension: 10 cm tube, 8 mm Dia.
TP-04 K型熱電偶感測棒 Thermocouple Probe (Type K) TP-04
- * Measure Range: -50 ℃ to 400 ℃, -50 ℉ to 752 ℉.
- * Size : Temp. sensing head - 15 mm Dia. Probe length - 120 mm.
RS-232 電纜 (RS232 cable)
- Model : UPCB-01, RS232 cable for connecting between the meter & computer COM port
USB 電纜 (USB cable)
- Model : USB-01, USB cable for connecting between the meter & the computer USB port.
軟體 (Software)
- Model : SW-U801-WIN, Windows version.
* Software apply as the performance of data logging system & data recorder
|
