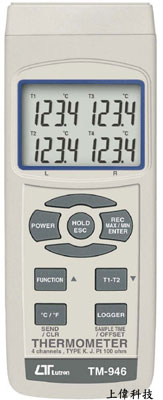

TM-946 四視窗顯示溫度計
特色
-
測量範圍 : Type K : -199.9 ~ 1370°C , Type J : -199.9 ~ 1210°C
-
-
精確度 : ±0.5%
-
攝氏(°C) / 華氏(°F)單位選擇
-
可記錄1600筆資料
-
讀值鎖定及記錄測量中之最大/最小值
-
RS-232 / USB 連接介面 (軟體選購)
-
Size:174 X 68 X 42mm
FEATURES
Type K/J, Pt 100 ohm, measurement with 4 display.
Show 4 channels display on the LCD at the same time.
Type K : -199.9 to 1370 ℃.
Type J : -199.9 to 1210 ℃.
Pt 100 ohm : -199.9 to 850 ℃.
℃/℉, 0.1 degree/1 degree.
4 channels ( T1, T2, T3, T4 ), T1-T2.
Microcomputer circuit provides intelligent function and high accuracy.
Manual and auto data logger, with flexible sampling time selection, can save max. 16,000 reading data.
Records Maximum and Minimum readings with recall.
Data hold function for freezing the desired value.
Offset adjustment for the Type K and Type J measurement.
Offset adjustment for the Pt 100 measurement.
Measuring unit can select to ℃ or ℉.
DC 1.5V ( UM-4, AAA ) battery x 6 PCs.
Build in the input socket for DC 9V power adapter.
RS232 PC serial interface.
Few panel buttons, easy operation.
Built-in low battery indicator.
Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- * Show 4 channels display on the display at the same time.
顯示單位 (Display Unit)
- ℃, ℉.
解析度 (Resolution)
- 0.1 ℃, 0.1 ℉.
測量頻數 (Channels)
- T1, T2, T3, T4, T1-T2.
感應器型式 (Sensor Type)
- Type K thermocouple probe
- Type J thermocouple probe.
- PT 100 ohm probe * Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- Manual : Push the data logger button once will save data one time. * Set the sampling to 0 second.
- Auto : 1 second to 59 minutes and 59 seconds.
資料集錄器記憶數(Data Logger number)
- Max. 16,000-point Data logger
- Type K, Type J, 4 channels ( T1, T2, T3, T4 ) * Memory use 4 data point space in the memory.
- Pt 100 ohm, 2 channels ( T1,T2 ) * Memory use 2 data point space in the memory.
- T1-T2 * Memory use 4 data point space in the memory.
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the cold junction both type K/J thermometer
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- Available for advanced calibration procedure.
感測器輸入接頭 (Probe Input Socket)
- Type K, Type J : 2 pin thermocouple socket.
- Pt 100 ohm : Ear phone socket.
過載指示 (Over Indication)
- Show of "- - - -".
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Approx. DC 9 mA.
重量 (Weight)
- 310 g/0.68 lb.
體積 (Dimension)
- 174 x 68 x 42 mm ( 6.9 x 2.7 x 1.7 inch ).
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * Pt 100 ohm probe, TP-101.
- * AC to DC 9V adapter.
- * RS232 cable, UPCB-01
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
- * Data Logger software, SW-DL2005.
- * Soft carrying case, CA-05A.
- * Hard carrying case, CA-06.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
K型 , J型熱電偶 (Type K, Type J thermocouple)
Sensor Type |
Resolution |
Range |
Accuracy |
Type K |
1 ℃ |
1000 to 1370.0 ℃ |
± ( 0.5 % + 1 ℃ ) |
0.1 ℃ |
-199.9 to 999.9 ℃ |
1 ℉ |
1000 to 2498 ℉ |
± ( 0.5 % + 1.8 ℉ ) |
0.1 ℉ |
-199.9 to 999.9 ℉ |
Type J |
1 ℃ |
1000 to 1210 ℃ |
± ( 0.5 % + 1 ℃ ) |
0.1 ℃ |
-199.9 to 999.9 ℃ |
1 ℉ |
1000 to 2210 ℉ |
± ( 0.5 % + 1.8 ℉ ) |
0.1 ℉ |
-199.9 to 999.9 ℉ |
* Accuracy value is specified for the meter only
* Type K probe TP-01 TP-02A, TP-03. TP-04 are the optional accessories.
PT 100 歐姆 (PT 100 ohm)
Resolution |
Range |
Accuracy |
0.1 ℃ |
-199.9 to 850 ℃ |
± ( 0.4 % + 1 ℃ ) |
1 ℉ |
1000 to 1562 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
0.1 ℉ |
-199.9 to 999.9 ℉ |
1 ℉ |
-200 to -327 ℉ |
* Pt 100 ohm probe TP-101 is the optional accessory.
|
