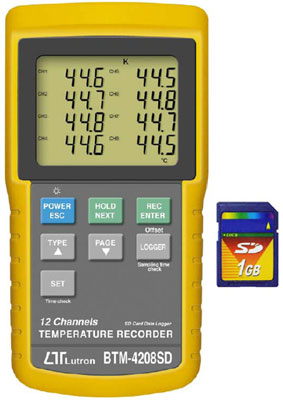

BTM-4208SD 12點記憶溫度計
特色
-
12點溫度測量及記錄功能 (SD 卡記錄儲存)
-
測量範圍 :TYPE K : -100.0 ~ 1300.0°C
-
精確度：±0.4%
-
適用 J/T/E/R/S 等熱電偶測量
-
支援 1GB ~ 16GB記憶卡.SD卡
-
可自動或手動紀錄儲存
-
資料記錄取樣時間設定：1 ~ 3600秒接可設定
-
內建萬年曆及時鐘功能
-
讀值鎖定及記錄測量中之最大 / 最小值
-
RS-232 / USB 連接介面(軟體選購)
-
Size：225 X 125 X 64mm
FEATURES
12 channels Temperature recorder, use SD card to save the data along with time information, paperless.
Real time data logger, save the 12 channels Temp. measuring data along the time information ( year, month, date, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves.
Channels no. : 12 channels ( CH1 to CH12 ) temperature measurement.
Sensor type : Type J/K/T/E/R/S thermocouple.
Auto datalogger or manual datalogger. Data logger sampling time range : 1 to 3600 seconds.
Type K thermometer : -100 to 1300 ℃.
Type J thermometer : -100 to 1200 ℃.
Page select, show CH1 to CH8 or CH9 to CH12 in the same LCD.
Display resolution : 1 degree/0.1 degree.
Offset adjustment.
SD card capacity : 1 GB to 16 GB.
RS232/USB computer interface.
Microcomputer circuit provides intelligent function and high accuracy.
Jumbo LCD with green light backlight, easy reading.
Can default auto power off or manual power off.
Data hold to freeze the measurement value.
Record function to present the max. and min. reading.
Power by UM3/AA ( 1.5 V ) x 8 batteries or DC 9V adapter.
RS232/USB PC COMPUTER interface.
Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 82 mm x 61 mm. * with green color backlight.
頻數 (Channels)
- 12 channels : T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 and T12.
感測器型態 (Sensor type)
- Type K thermocouple probe.
- Type J/T/E/R/S thermocouple probe.
解析度 (Resolution)
- 0.1℃/1℃, 0.1℉/1 ℉.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time. @ Set the sampling time to 0 second.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set temperature unit to ℃ or ℉
- * Set sampling time
- * SD memory card Format
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the type K/J/T/E/R/S thermometer.
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- To adjust the zero temperature deviation value.
感測器輸入接頭 (Probe Input Socket)
- 2 pin thermocouple socket.
過載指示 (Over Indication)
- Show of "- - - -".
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7.5 mA.
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA.
- * If LCD backlight on, the power consumption will increase approx. 11 mA.
重量 (Weight)
- Meter : 948g ( includes batteries )
體積 (Dimension)
- 225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )
附件 (Standard Accessory)
- * Instruction manual.............................. 1 PC
- * Type K Temp. probe, TP-01................. 2 PC
- * SD Card ( 2 GB )................................. 1 PC
- * Hard carrying case, CA-08....................1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * USB cable, USB-01.
- * RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U811-WIN.
- * AC to DC 9V adapter.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1300 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2372 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type J |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1150 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2102 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type T |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 400.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 752.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| Type E |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 900.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 1652 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type R |
1 ℃ |
0 to 600 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 601 to 1700 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1113 to 3092 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type S |
1 ℃ |
0 to 600 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 601 to 1500 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1113 to 2732 ℉ |
± ( 0.4 % + 2 ℉ ) |
Remark :
- * Accuracy value is specified for the meter only.
- * Accuracy is tested under the meter's environment temperature within 23 ± 5℃.
- * Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
|
