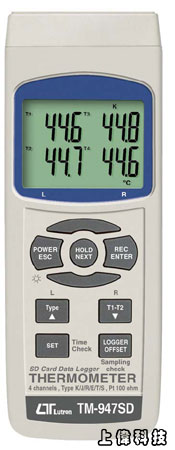

TM-947SD 記憶式四視窗溫度計
簡介
-
即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
-
溫度範圍
-
PT-100 : -199.9°C ~ 850.0°C. ±0.4%
-
Type K : -50.0°C ~ 1300.0°C. ±0.4%
-
Type J : -50.0°C ~ 1150.0°C. ±0.4%
-
Type T : -50.0°C ~ 400.0°C. ±0.4%
-
Type E : -50.0°C ~ 900.0°C. ±0.4%
-
Type R : 0°C ~ 1700°C. ±0.5%
-
Type S : 0°C ~ 1500°C. ±0.5%
-
讀值鎖定及記錄測量中之最大/最小值.
-
RS-232 / USB 連接介面.(軟體選購)
-
Size : 132 x 80 x 32mm.
FEATURES
Type K/J/T/E/R/S, Pt 100 ohm, measurement with 4 display.
Show 4 channels display on the LCD at the same time.
Type K : -100 to 1300 ℃.
Type J : -100 to 1200 ℃.
Pt 100 ohm : -199.9 to 850.0 ℃.
℃/℉, 0.1 degree/1 degree
4 channels ( T1, T2, T3, T4 ), T1-T2.
Microcomputer circuit provides intelligent function and high accuracy.
Offset adjustment for the Type K/J/T/E/R/S measurement.
Offset adjustment for the Pt 100 measurement.
Measuring unit can select to ℃ or ℉.
Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
Manual datalogger is available ( set the sampling time to 0 second ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, thenuser can make the further data or graphic analysis by themselves.
SD card capacity : 1 GB to 16 GB.
LCD with green light backlight, easy reading.
Can default auto power off or manual power off.
Data hold, record max. and min. reading.
Microcomputer circuit, high accuracy.
Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
RS232/USB PC COMPUTER interface.
Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量頻數 (Channels)
- T1, T2, T3, T4, T1-T2.
感應器型式 (Sensor Type)
- Type K thermocouple probe
- Type J/T/E/R/S thermocouple probe.
- PT 100 ohm probe * Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
解析度 (Resolution)
- 0.1℃/1℃, 0.1℉/1 ℉.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set temperature unit to ℃ or ℉
- * Set sampling time
- * SD memory card Format
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the type K/J/T/E/R/S thermometer.
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- Available for Type K/J/T/E/R/S and Pt 100 ohm.
感測器輸入接頭 (Probe Input Socket)
- Type K/J/T/E/R/S : 2 pin thermocouple socket.
- Pt 100 ohm : Ear phone socket.
過載指示 (Over Indication)
- Show of "- - - -".
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 85% RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 8.5 mA.
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA.
- * If LCD backlight on, the power consumption will increase approx. 14 mA.
重量 (Weight)
- 489 g/1.08 LB.
體積 (Dimension)
- 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * Pt 100 ohm probe, TP-101.
- * SD Card ( 1 GB )
- * SD Card ( 2 GB )
- * AC to DC 9V adapter.
- * RS232 cable, UPCB-02
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
- * Soft carrying case, CA-05A.
- * Hard carrying case, CA-06.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
白金 PT 100 歐姆 熱電偶 (Platinum PT 100 ohm Thermometer)
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-199.9 to 850.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-327.0 to 999.9 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| 1 ℉ |
1000 to 1562 ℉ |
± ( 0.4 % + 2 ℉ ) |
* Pt 100 ohm probe TP-101 is the optional accessory.
Type K/J/T/E/R/S
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1300 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2372 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type J |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1150 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2102 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type T |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 400.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 752.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| Type E |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 900.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 1652 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type R |
1 ℃ |
0 to 600 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 601 to 1700 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1113 to 3092 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type S |
1 ℃ |
0 to 600 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 601 to 1500 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1113 to 2732 ℉ |
± ( 0.4 % + 2 ℉ ) |
Remark :
- a. Accuracy value is specified for the meter only.
- b. Accuracy is tested under the meter's environment temperature within 23 ± 5℃
- c. Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
|
