| 產品名稱： |

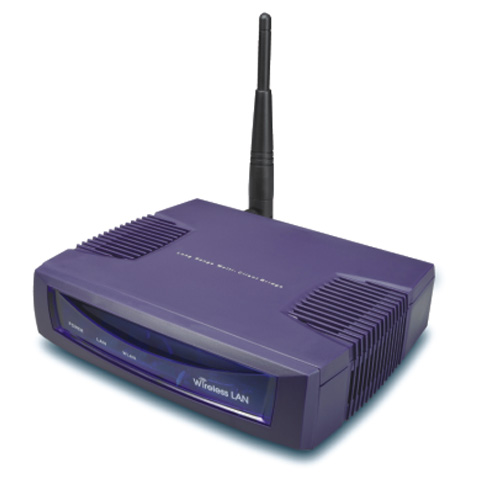

室內無線橋接器/路由器/基地台 |
| 型 號： |
NL-3054CB3 PLUS (Deluxe) |
| 簡 規： |
無線的AP和橋接器同時提供無線收發功能 |
| 詳 規： |
資料傳輸速率 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 標準 IEEE802.11b/g, IEEE802.1x, IEEE802.3, IEEE802.3u 相容性 IEEE 802.11g/ IEEE 802.11b compliant 電源 Power Supply: 90 to 240 VDC +/-10%(depends on different countries) Device: 12 V/ 1A 燈號狀態 LAN:Link, WLAN:Link, Power: on/off 認證 FCC Part 15/UL, ETSI 300/328/CE 頻段 2.400∼2.484 GHz Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA) |
| 詳規補述： |
操作頻道 11 for North America, 14 for Japan, 13 for Europe, 2 for Spain, 4 for France 接收感度 -94dBm @ 1Mbps -92dBm @ 6Mbps -83dBm @ 24Mbps -92dBm @ 2Mbps -90dBm @ 9Mbps -79dBm @ 36Mbps -89dBm @ 5.5Mbps -88dBm @ 12Mbps -74dBm @ 48Mbps -86dBm @ 11Mbps -86dBm @ 18Mbps -72dBm @ 54Mbps 傳輸功率 21 +/- 2dBm @1, 2, 5.5 and 11Mbps 20 +/- 2dBm @6, 9, 12, 18Mbps 17 +/- 2dBm @24, 36Mbps 16 +/- 2dBm @48, 54Mbps RF連接頭 TNC Type (Female Reverse - FCC Standard) |
|
| |
|
